Wilwood

WIL340-13831 Brake Pedal - Dual MC - Floor Mount - 6:1

(No reviews yet) Write a Review
SKU:
WIL340-13831
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
$150.11

Description

Floor Mount Brake Pedal - Wilwood 340-13831 (supercedes 340-1285)

This floor mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.

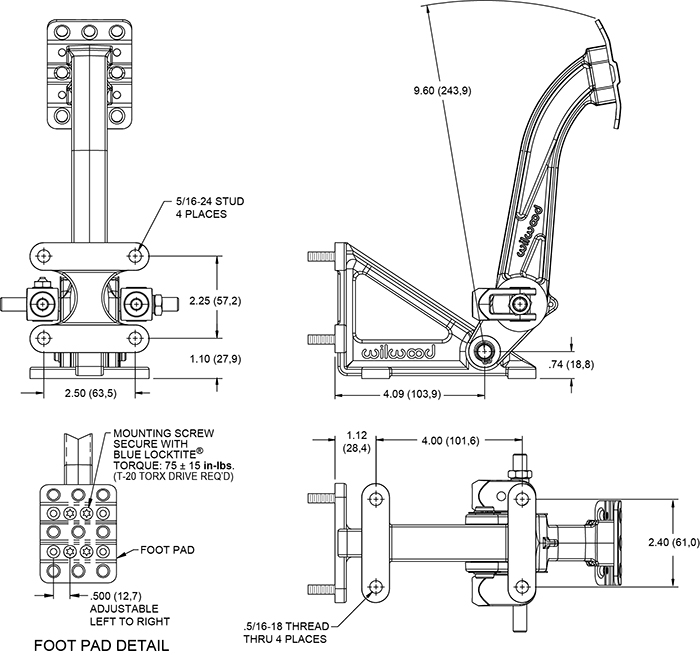

Replaces cast aluminum arm pedal 340-1285 Drawing

Floor Mount Brake Pedal - Product Summary
Pedal Type
Type: Material: Finish:
Floor Mount Brake Pedal Aluminum Black E-coat
Pedal Description
Mount Loc: Mount Facing: Balance Bar: Mount Length (in):
Floor Forward Yes
Ratio / Length
Pedal 1 Ratio: Pedal 2 Ratio: Pedal 1 Length (in): Pedal 2 Length (in):
6.0 to 1   9.6
Notes
Desc 1: Desc 2:
PEDAL ASSEMBLY,6:1,DUAL,M/C,FORGED PEDAL
Cautionary Info
Replaces cast aluminum arm pedal 340-1285


PLEASE NOTE THIS IS PEDAL ASSEMBLY ONLY - MASTER CYLINDERS ARE SOLD SEPARATE
